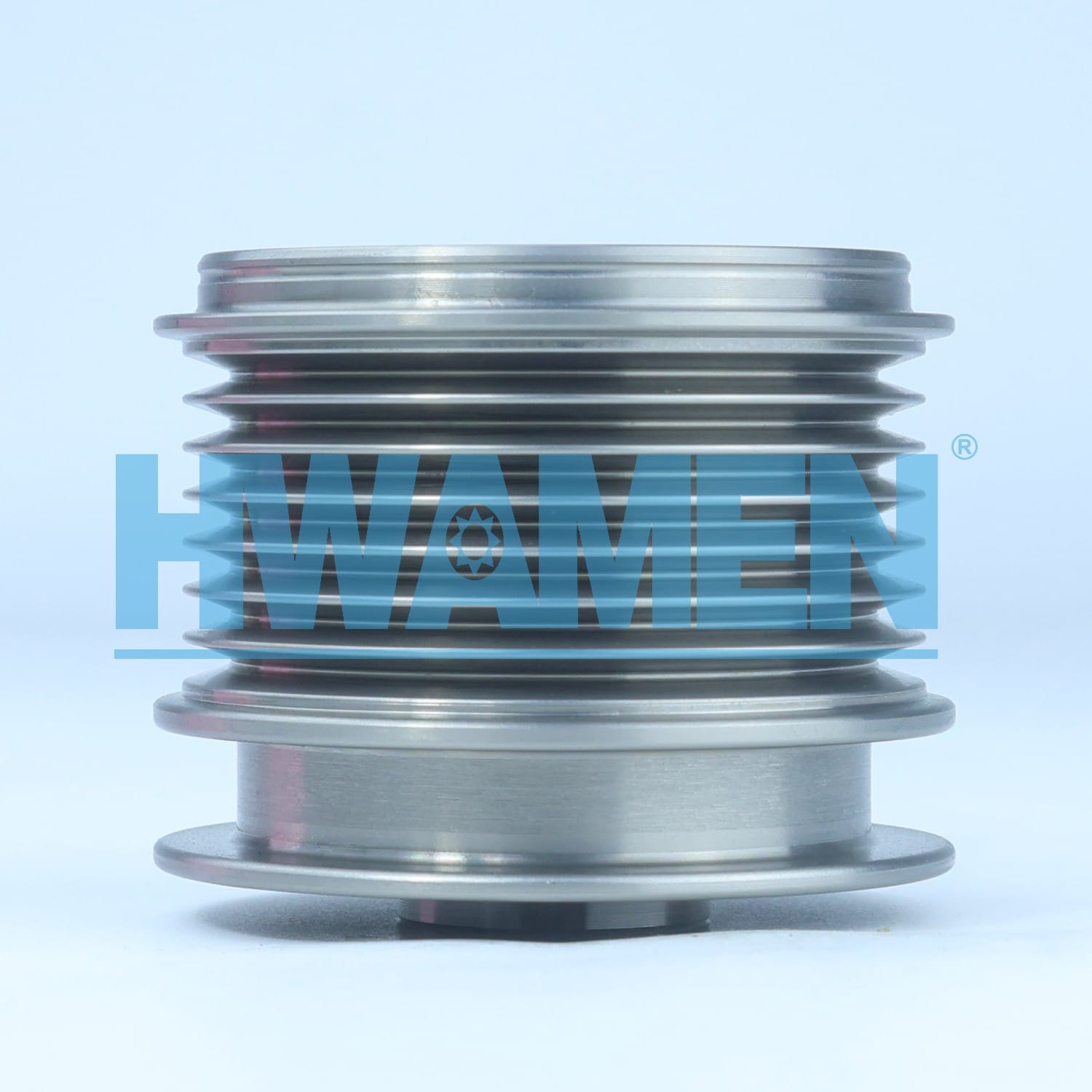

HM-2023
📐 Technical Specifications
| I.D [ mm ] | 17 |
|---|---|
| O.D [ mm ] | 55.7 |
| L [ mm ] | 49.8 |
| W [ mm ] | 19.4 |
| G [ qty. ] | 7 |
| S [ mm ] | M16x1.5 |
| Clockwise | CW |
OE Number (14)
| OE Number | Producer |
|---|---|
| LRA03453 | LUCAS |
| 439471 | VALEO |
| 439610 | VALEO |
| 439611 | VALEO |
| 440127 | VALEO |
| 440128 | VALEO |
| TG12C026 | VALEO |
| TG15C075 | VALEO |
| TG15C163 | VALEO |
| A2711541402 | M-BENZ |
| A2711541502 | M-BENZ |
| A2711550215 | M-BENZ |
| 864658 | VOLUND |
| EC4248 | WOOD AUTO SUPPL |
| Application | Brand |
|---|---|
| C-CLASS (W203),C 180 Kompressor,C 200 Kompressor,C230 Kompressor, 2002-2007 | MERCEDES-BENZ |
| C-CLASS (W204),C 180 Kompressor,C 200 Kompressor,C250 CGI, 2001-2014 | MERCEDES-BENZ |
| C-CLASS T-Model (S203),C 180 Kompressor,C 200 CGI Kompressor,C 200 Kompressor,C 230 Kompressor£¬2002-2008 | MERCEDES-BENZ |
| C-CLASS T-Model (S204),C 180 Kompressor, C 200 Kompressor,C 250 CGI, 2001-2014 | MERCEDES-BENZ |
| CLC-CLASS (CL203),CLC 160,CLC 180 Kompressor,CLC 200 Kompressor, 2002-2011 | MERCEDES-BENZ |
| CLK (C209),200 CGI,200 Kompressor, 2002-2009 | MERCEDES-BENZ |
| CLK Convertible (A209),CLK 200 CGI,CLK 200 Kompressor, 2002-2010 | MERCEDES-BENZ |
| E-CLASS (W212),E 200 CGI,E 200 NGT,E 250 CGI, 2001-2015 | MERCEDES-BENZ |
| E-CLASS T-Model (S212),E 200 CGI,E 250 CGI, 2009-2016 | MERCEDES-BENZ |
| SLK (R171),200 Kompressor£¬2001-2011 | MERCEDES-BENZ |
| SPRINTER 3,5-t Box (906),316,316 LGT,316 NGT, 2008-2009 | MERCEDES-BENZ |
| SPRINTER 3,5-t Bus (906),316,316 LGT,316 NGT, 2008-2009 | MERCEDES-BENZ |
| SPRINTER 3-t Box (906),216, 2008-2009 | MERCEDES-BENZ |
| SPRINTER 3-t Bus (906),216, 2008-2009 | MERCEDES-BENZ |
| SPRINTER 3-t Platform/Chassis (906),216, 2005-2016 | MERCEDES-BENZ |
| SPRINTER 5-t Box (906),516, 2003-2009 | MERCEDES-BENZ |
| SPRINTER 5-t Platform/Chassis (906),516,516 NGT | MERCEDES-BENZ |
| Application | Brand |
|---|---|
| C-CLASS (W204), C 180 Kompressor£¬C 200 Kompressor£¬03/12 | MERCEDES-BENZ (BBDC) |
Reference number (18)
| Ref Number | Producer |
|---|---|
| F-557311.XX | INA |
| 535016510 | LUK |
| 333080 | CARGO |
| ALP2398 | DAYCO |
| 353921 | IKA |
| 5673 | ZEN |
| 28751/21751 | ZNP |
| 21688 | JIASUN |
| 80132 | NF |
| AFP3022 | AS |
| 588052 | VALEO |
| 595258 | VALEO |
| 2604094 | VALEO |
| F032333080 | HC-CARGO |
| AFP3022INA | AS |
| AFP3022V | AS |
| F55731101 | INA |
| F557311 | INA |
Frequently Asked Questions about HM-2023
Q: What OE numbers does HM-2023 replace?
A: The HM-2023 is a direct replacement for: LUCAS LRA03453, VALEO 439471, VALEO 439610, VALEO 439611, VALEO 440127, VALEO 440128.
Q: What are the cross-reference numbers?
A: It is compatible with these aftermarket parts: INA F-557311.XX, LUK 535016510, CARGO 333080, DAYCO ALP2398, IKA 353921, ZEN 5673.
Q: Is this part reliable?
A: Yes, it is 100% brand new and tested to meet OEM standards.
