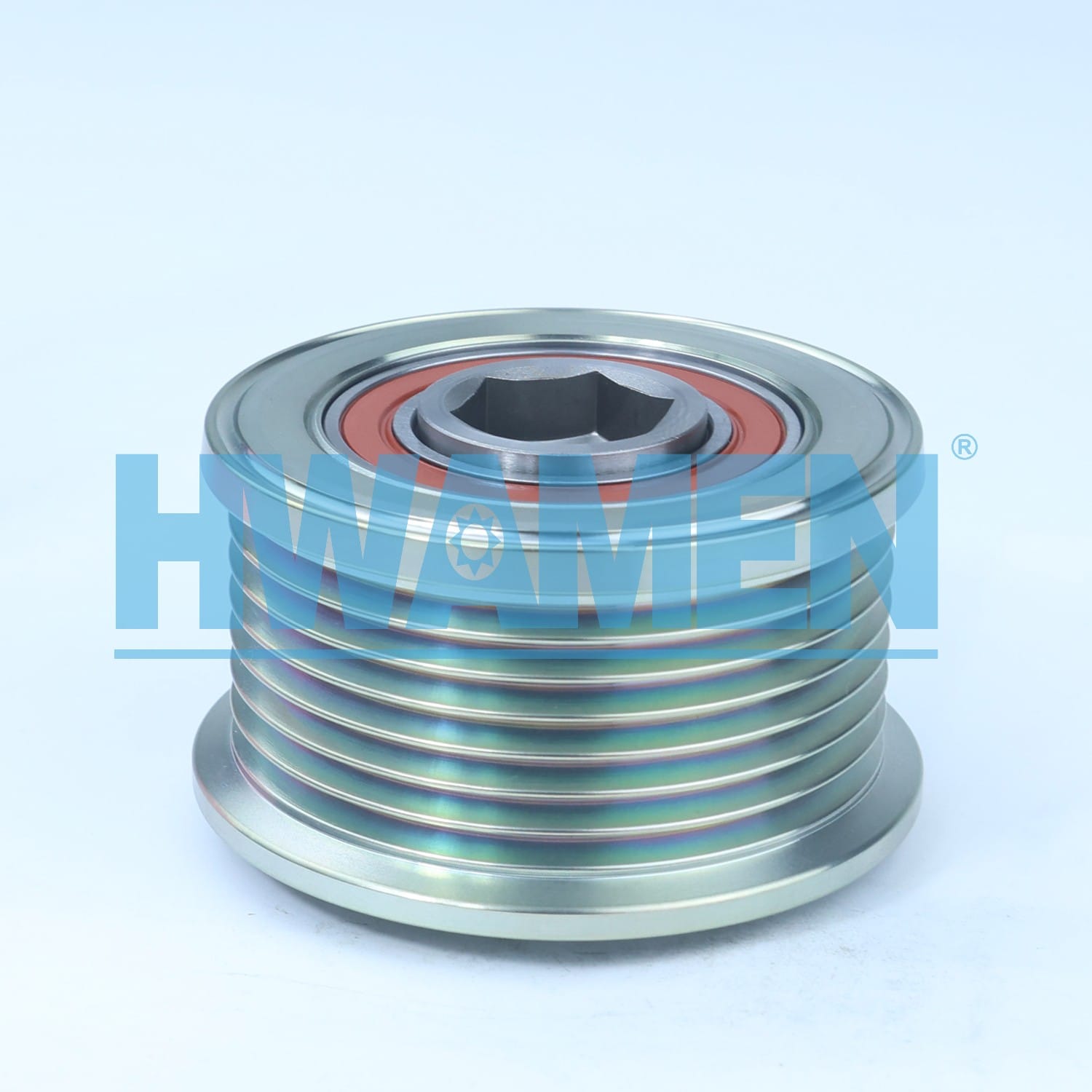

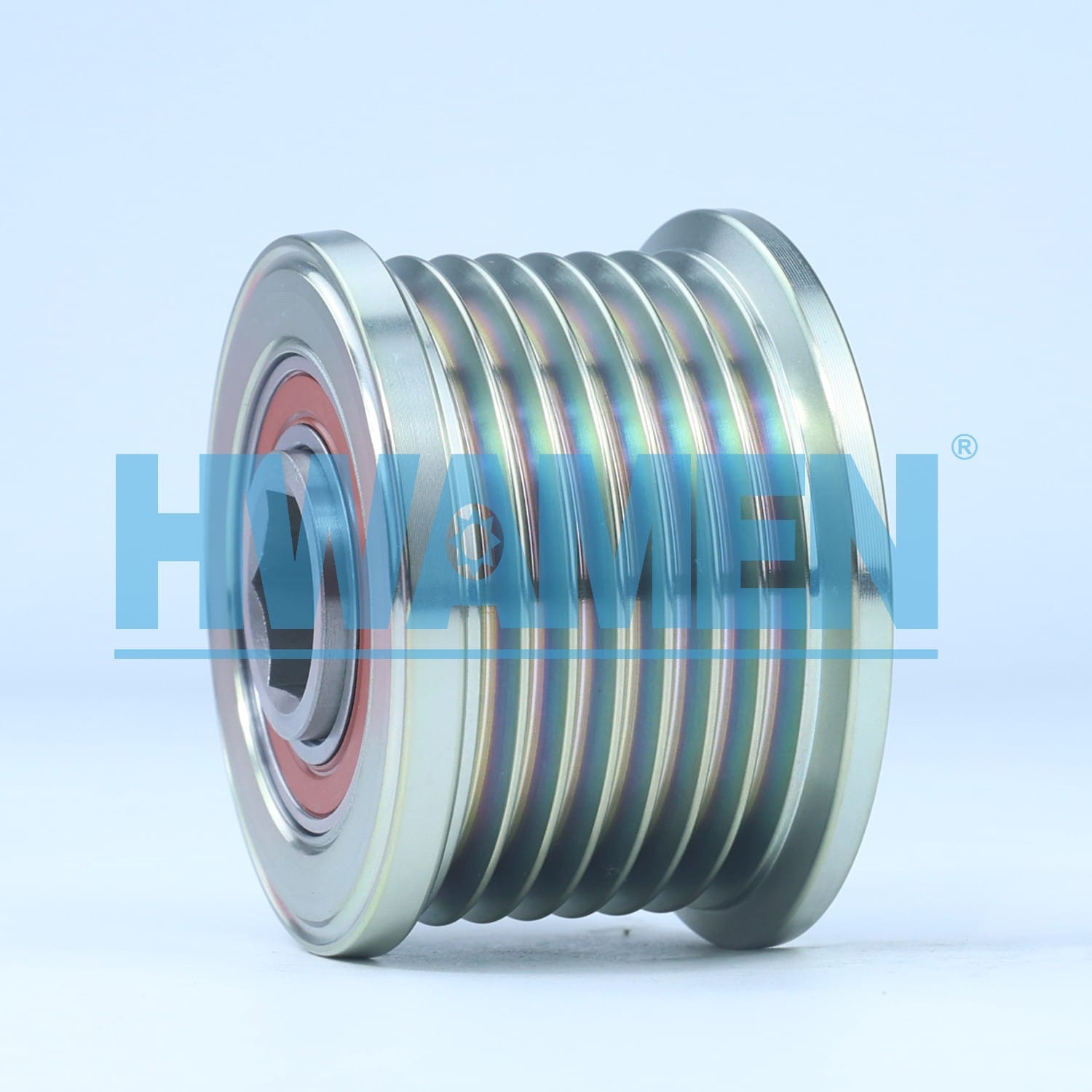

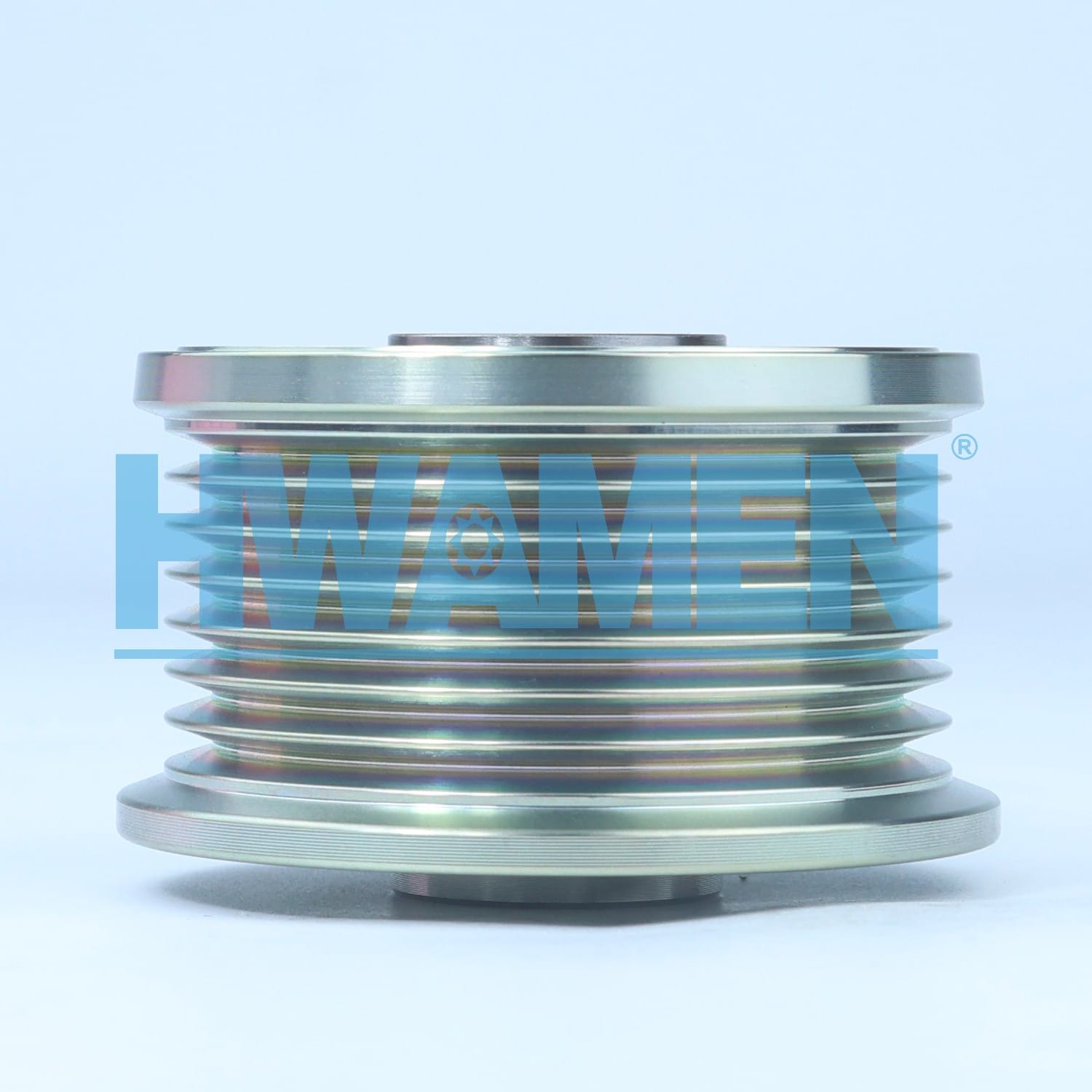

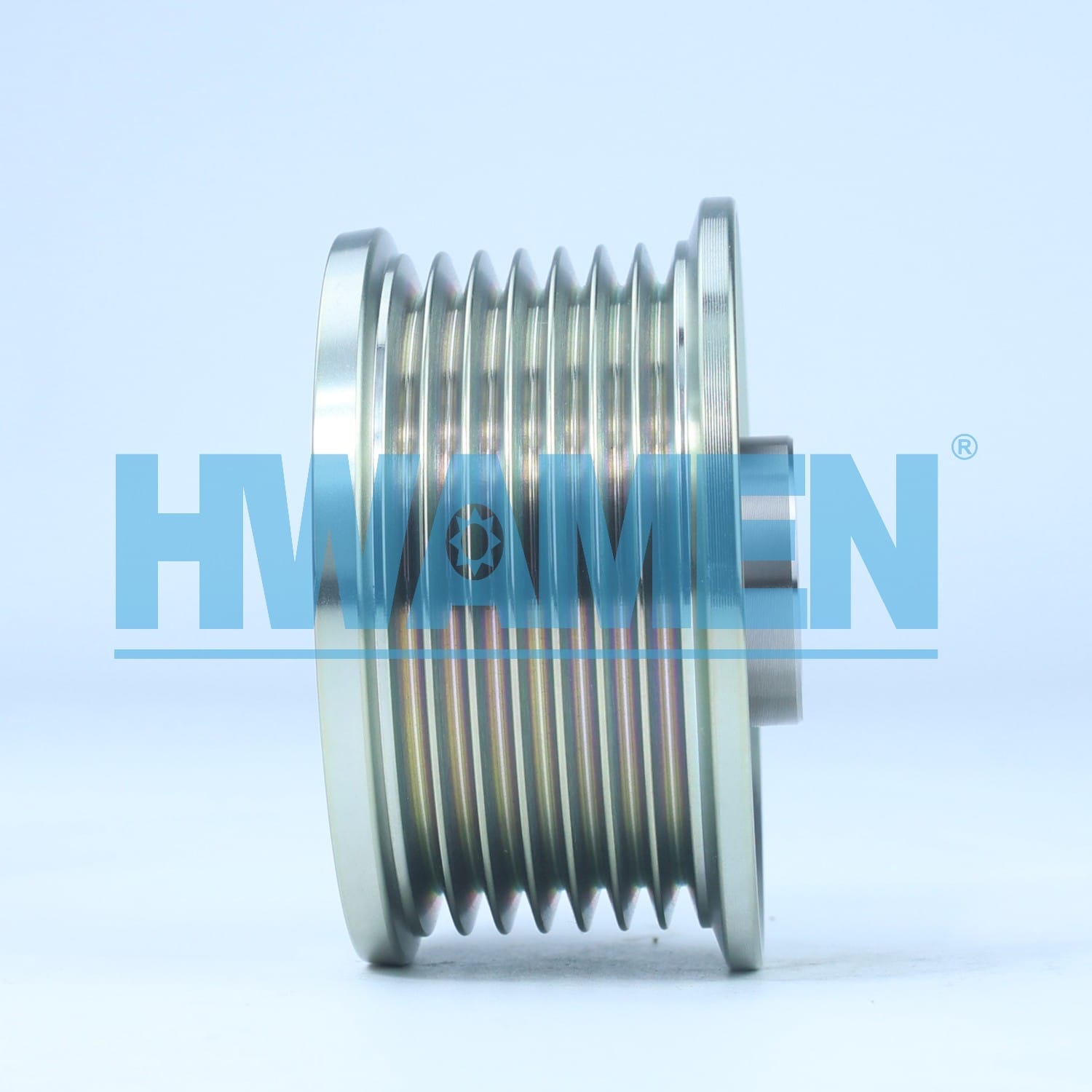

HM-2027NTN
📐 Technical Specifications
| I.D [ mm ] | 17 |
|---|---|
| O.D [ mm ] | 58.1 |
| L [ mm ] | 41.5 |
| W [ mm ] | 10.9 |
| G [ qty. ] | 7 |
| S [ mm ] | M14x1.5 |
| Clockwise | CW |
OE Number (69)
| Application | Brand |
|---|---|
| IS II (E2),200d,220d, 2005-2012 | LEXUS |
| Application | Brand |
|---|---|
| AURIS (E15),2.0 D-4D,2.2 D, 2006-2012 | TOYOTA |
| AURIS (E18),2.0 D-4D, 2004-2015 | TOYOTA |
| AVENSIS (T25),2.0 D-4D,2.2 D-4D,2.2 D-CAT, 2003-2011 | TOYOTA |
| AVENSIS Saloon (T27),2.0 D-4D,2.2 D-4D, 2008-2018 | TOYOTA |
| COROLLA Saloon (E15),2.0 D-4D,2.2 D-4D, 2006-2014 | TOYOTA |
| COROLLA Verso (ZER, ZZE12, R1), 2.2 D-4D, 2003-2010 | TOYOTA |
| DYNA Platform/Chassis (KD, LY, Y2, U3, U4),3.0 D4d,3.0 D4d 4WD, 2005-2015 | TOYOTA |
| FORTUNER (N15, N16_),2.4 D,2.4 D 4x4, 2.8 D,2.8 D 4x4,3.0 Tdi 4x4, 2005-2015 | TOYOTA |
| HIACE IV Box (H1, H2),2.5 D-4D,2.5 D-4D 4WD, 2001-2012 | TOYOTA |
| HIACE IV Bus (H1, H2),2.5 D-4D,2.5 D-4D 4WD, 2001-2012 | TOYOTA |
| HILUX VIII Platform/Chassis (N1), 2.4 D,2.4 D 4WD,2.8 D,2.8 D 4WD, 2007-2015 | TOYOTA |
| INNOVA II (N14),2.4 GD,2.8 D, 2011-2015 | TOYOTA |
| LAND CRUISER 90 (J9), 3.0 D-4D,3.0 D-4D 4WD, 2000-2008 | TOYOTA |
| LAND CRUISER PRADO (J12), 3.0 D-4D, 2002-2012 | TOYOTA |
| RAV 4 III (A3),2.2 D,2.2 D 4WD, 2002-2013 | TOYOTA |
| RAV 4 IV (A4),2.0 D,2.0 D 4WD,2.2 D 4WD, 2001-2018 | TOYOTA |
| REGIUSACE Box (TRH2, KDH2),2.5 D-4D,3.0 D-4D,3.0 D-4D 4WD, 2004-2008 | TOYOTA |
| VERSO (R2), 2.0 D-4D,2.2 D-4D,2.2 D-CAT, 2004-2018 | TOYOTA |
Reference number (30)
| Ref Number | Producer |
|---|---|
| F-567525.XX17 | INA |
| 53501731017 | LUK |
| F-585322.XX | INA |
| 535023210 | LUK |
| 330527 | CARGO |
| 354241 | IKA |
| 353821 | IKA |
| 354521 | IKA |
| 354731 | IKA |
| 5513 | ZEN |
| 24-82310 | WAI |
| 20779 | WAI |
| 28626 | ZNP |
| 21513 | JIASUN |
| 80243 | NF |
| AFP6023 | AS |
| ALN9969 | KRAUF |
| UD13357AFP | AS |
| 328V2-2 | NTN |
| 357V1-1 | NTN |
| 361V1-1 | NTN |
| 5609 | ZEN |
| 80846 | NF |
| AFP6026 | AS |
| F032335011 | HC-CARGO |
| F032330527 | HC-CARGO |
| AFP6026INA | AS |
| F585322 | INA |
| 5350232000 | LUK |
| 535023200 | LUK |
Frequently Asked Questions about HM-2027NTN
Q: What OE numbers does HM-2027NTN replace?
A: The HM-2027NTN is a direct replacement for: DENSO 102211-8370, DENSO 104210-1880, DENSO 104210-2370, DENSO 104210-3410, DENSO 104210-3411, DENSO 104210-3422.
Q: What are the cross-reference numbers?
A: It is compatible with these aftermarket parts: INA F-567525.XX17, LUK 53501731017, INA F-585322.XX, LUK 535023210, CARGO 330527, IKA 354241.
Q: Is this part reliable?
A: Yes, it is 100% brand new and tested to meet OEM standards.
