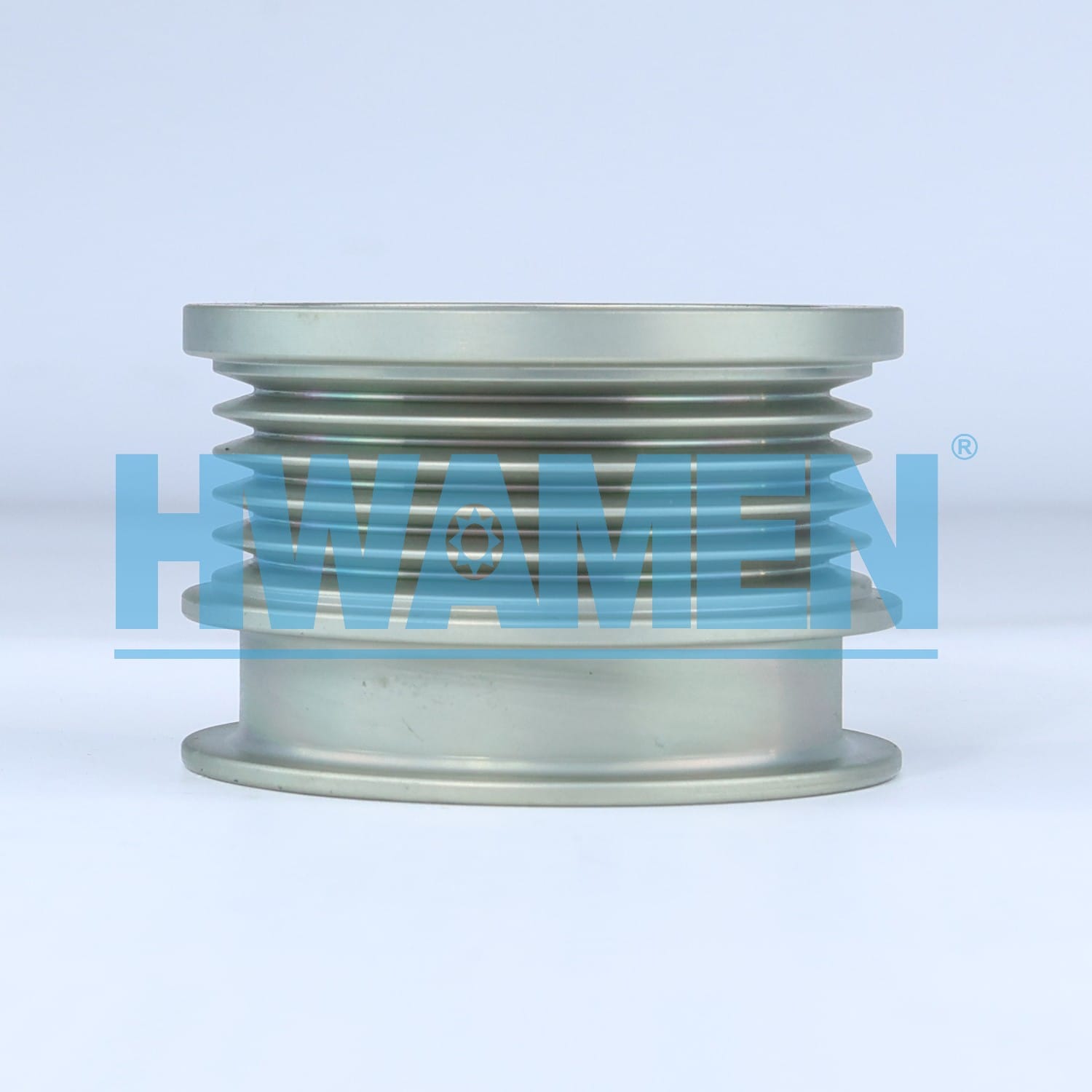

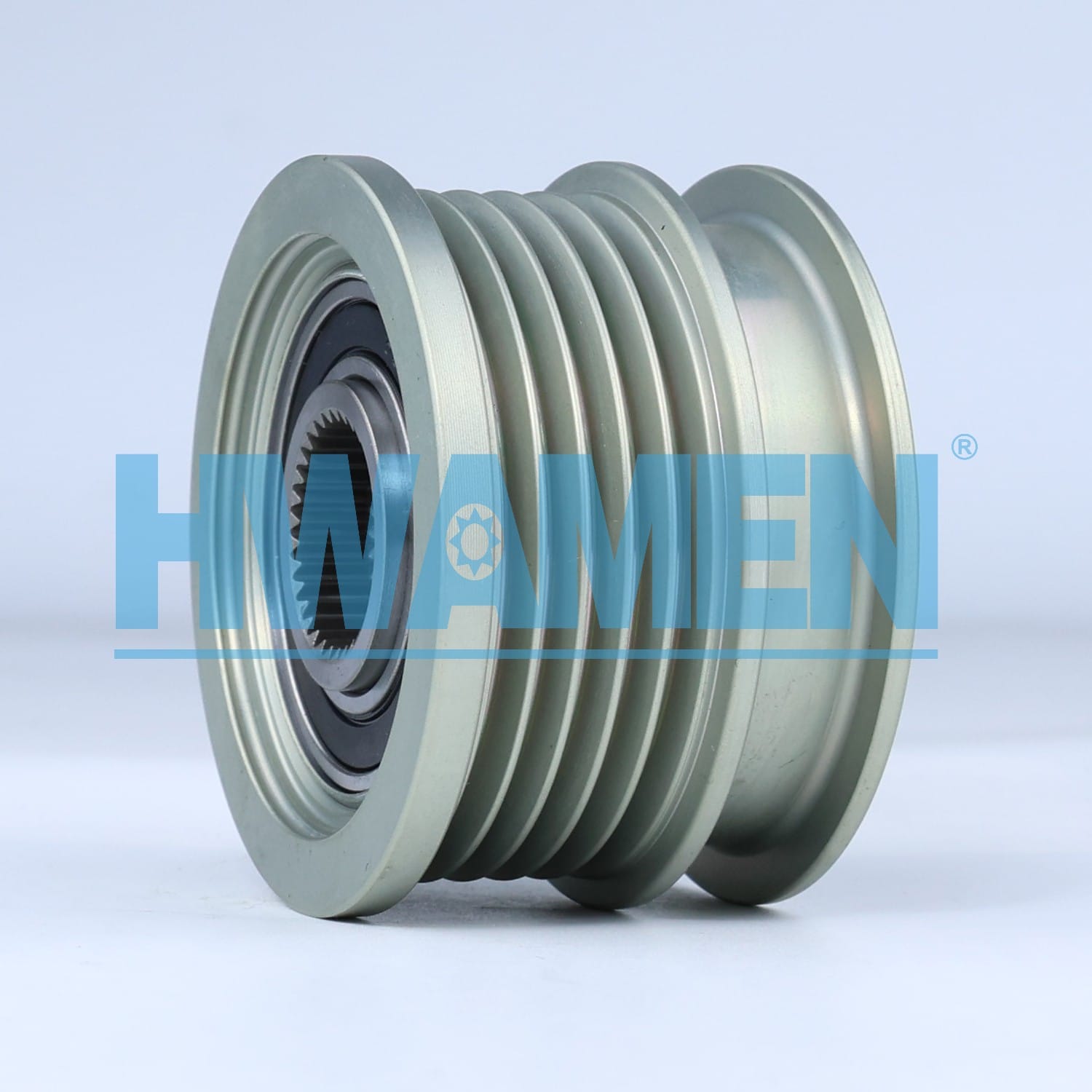

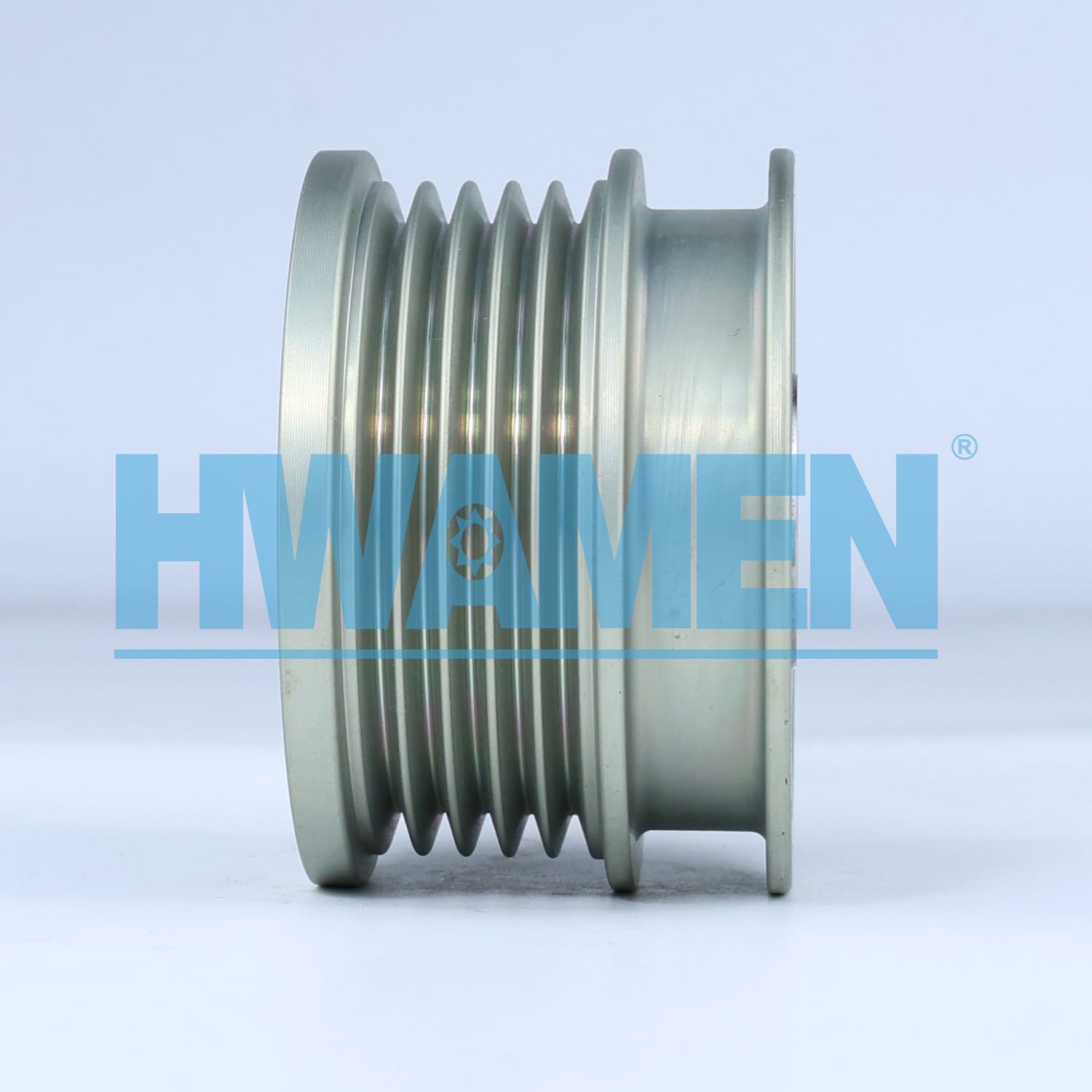

HM-3005
📐 Technical Specifications
| I.D [ mm ] | 17 |
|---|---|
| O.D [ mm ] | 56 |
| L [ mm ] | 43/37.2 |
| W [ mm ] | 18 |
| G [ qty. ] | 5 |
| S [ mm ] | M16x1.5 |
| Clockwise | CW |
OE Number (18)
| OE Number | Producer |
|---|---|
| 21483 | LESTER |
| 21484 | LESTER |
| 22721 | LESTER |
| 22785 | LESTER |
| LRA01708 | LUCAS |
| 0123310038 | BOSCH |
| 0123320033 | BOSCH |
| 0123320036 | BOSCH |
| 0123320048 | BOSCH |
| 0123325006 | BOSCH |
| 0123325036 | BOSCH |
| 0123325048 | BOSCH |
| 0986040930 | BOSCH |
| CA1239IR | CARGO |
| 028903026L | VW |
| 028903026P | VW |
| 028903119AP | VW |
| 028903119S | VW |
| Application | Brand |
|---|---|
| AROSA (6H), 1.7 SDI | SEAT |
| Application | Brand |
|---|---|
| FELICIA I (6U1),1.9 D | SKODA |
| FELICIA I Estate (6U5), 1.9 D | SKODA |
| FELICIA I Pickup (6UF, 6U7), 1.9 D | SKODA |
| FELICIA II (6U1),1.9 D, 2001-2006 | SKODA |
| FELICIA II Estate (6U5), 1.9 D, 2001-2006 | SKODA |
| Application | Brand |
|---|---|
| CADDY II Pickup (9U7),1.9 D, 2006-2012 | VW |
| POLO (6N1), 1.7 SDI,60 1.7 SDI,64 1.9 D,64 1.9 SDI | VW |
| Application | Brand |
|---|---|
| SDI,1 D,1 SDI | POLO |
Reference number (19)
| Ref Number | Producer |
|---|---|
| F-226556.XX | INA |
| 535000910 | LUK |
| 138282 | CARGO |
| 332290 | CARGO |
| ALP2333 | DAYCO |
| 335151 | IKA |
| 79202031 | LESTER |
| 5384 | ZEN |
| 24-91257-3 | WAI |
| 28585 | ZNP |
| 21384 | JIASUN |
| 80062 | NF |
| AFP0001 | AS |
| UD13197AFP | AS |
| 1126601556 | BOSCH |
| 1126601557 | BOSCH |
| 1127011843 | BOSCH |
| F00M991397 | BOSCH |
| 588066 | VALEO |
Frequently Asked Questions about HM-3005
Q: What OE numbers does HM-3005 replace?
A: The HM-3005 is a direct replacement for: LESTER 21483, LESTER 21484, LESTER 22721, LESTER 22785, LUCAS LRA01708, BOSCH 0123310038.
Q: What are the cross-reference numbers?
A: It is compatible with these aftermarket parts: INA F-226556.XX, LUK 535000910, CARGO 138282, CARGO 332290, DAYCO ALP2333, IKA 335151.
Q: Is this part reliable?
A: Yes, it is 100% brand new and tested to meet OEM standards.
